Item Sales Info
Part Number: FPD8159GRW / Vendor ID Number: 778 / Custom:

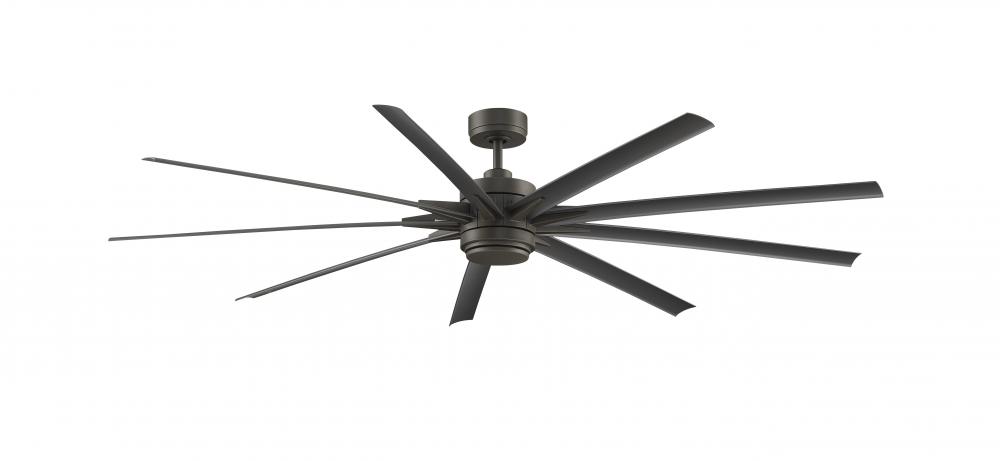

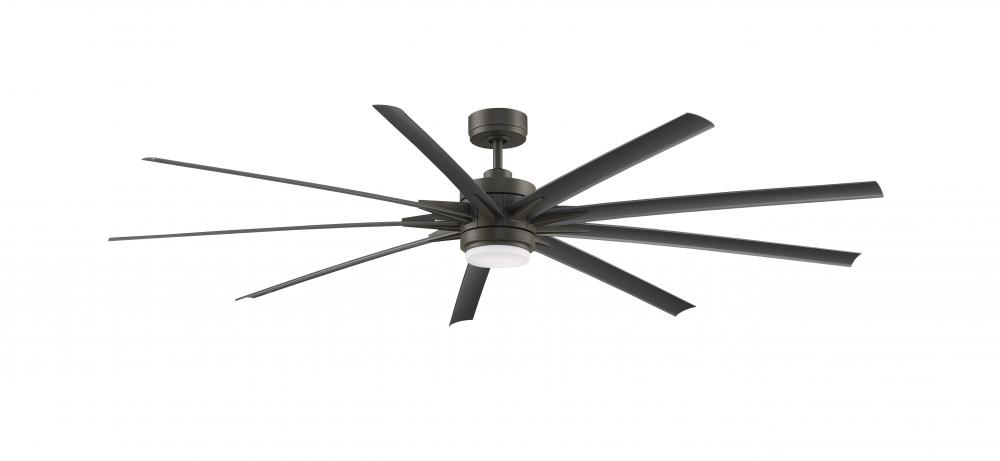

Odyn - 84 inch - GRW with WE Blades and LED Light Kit

Odyn - 84 inch - GRW with WE Blades and LED Light Kit

1,522
14
Pack Of: 1
  • Manufacturer availability unavailable.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification
    Dimensions
    Height: 16.64"
    Width: 84.00"
    Finish
    Matte Greige
    Product Overview
    The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    Info & Guides
    Click Here to View Specsheets
    Technical Details
    Energy Information at High Speed
    Airflow:
    10236 Cubic Feet per Minute
    Electricity Rate:
    34 Watts (excluded lights)
    Airflow Efficiency:
    232 Cubic Feet Per Minute Per Watt
    Details
    Category:
    Exterior
    Fans
    Subcategory:
    Exterior Fans
    Outdoor Fans
    Finish:
    Gray /vendors/vendorImages gray.jpg
    Miscellaneous /vendors/vendorImages miscellaneous.jpg
    Style:
    Traditional
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Wet Rated
    LED
    Voltage:
    10-99
    Glass Finish or Style:
    Frosted
    Opal
    Lumens:
    1101-1600
    Number of Blades:
    8+ Blades
    Location Rating:
    Wet Rated
    Wattage:
    18w
    Finish:
    Matte Greige
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Wet Rated
    Glass:
    Opal Frosted
    Category:
    Fan-Uni
    Family:
    Odyn 84
    Voltage:
    120
    Number of Bulbs:
    1 Bulbs
    Additional Info:
    10,236 CFM on High
    Compatible with most Smart home devices (required controls sold separately)
    DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air
    ENERGY STAR Most Efficient 2020
    Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included
    TR205 handheld remote with CR2032 batteries included
    Air Flow CFM:
    10236
    Air Flow Efficiency:
    232
    Amperage:
    0.45
    Blade Finish:
    Weathered Wood
    Blade Pitch:
    12
    Blade Span:
    84
    Bulb Type:
    18W LED Module
    Canopy:
    Diameter- 6.46 Height- 2.58
    Diameter:
    8.27
    Down Rod Included:
    6
    Electricity Used:
    34
    Harmonized Codes:
    8414.51.3000
    Kelvin:
    3000
    Length:
    84
    Light Kit Included:
    Yes
    Lumens / Light Output:
    1400
    Material:
    Composite
    Motor Fan Speed:
    16
    Motor RPM:
    70
    Motor Size:
    DC165NL
    Motor Type:
    DC
    Remote Control Included:
    TR205D
    Ship Carton Height:
    12.87
    Ship Carton Length:
    40.08
    Ship Carton Width:
    10.47
    Ship Weight:
    37.95
    Sold By:
    Each
    Warranty:
    Limited Lifetime Warranty
    Weight:
    34.18
    Airflow Efficiency Low:
    1136
    Airflow Efficiency Medium:
    507
    Avg Airflow Efficiency:
    268
    Avg CFM Energy:
    7210
    Avg Energy Use Watts:
    27
    Avg Estimated Yearly Energy Cost:
    8
    Avg Estimated Yearly Energy Cost on HIGH:
    10
    Blade Finish Method:
    Painted
    Blade Material:
    Composite
    Blade Reversible:
    No
    Blade Sweep:
    84
    Cap Included:
    Yes
    Carton Cubic Feet:
    3.1254
    Cartons Per Unit:
    1
    Case Height:
    12.87
    Case Length:
    40.08
    Case Weight Pounds:
    37.95
    Case Width:
    10.47
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    12.2
    Ceiling to Bottom No LK:
    16.33
    Ceiling to Bottom with LK:
    16.64
    CFM Low:
    4219
    CFM Medium:
    7527
    Compatible Accessories:
    CCK8002GRW, DR1-CPGR, DR1SS-12GRW, DR1SS-18GRW, DR1SS-24GRW, DR1SS-36GRW, DR1SS-48GRW, DR1SS-60GRW, DR1SS-72GRW, SCB1-52
    Compatible Controls:
    WFR8159
    Compatible Wall Controls:
    TW206D
    Country of Origin:
    China
    CRI:
    90
    Current Draw Low:
    0.07
    Current Draw Medium:
    0.2
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Exempt from DOE Procedure:
    No
    Fan Energy Star:
    Yes
    Included Control Type:
    Handheld
    Leadwire:
    80
    Light Kit Energy Star:
    Yes
    Maximum Slope Degree:
    27
    Motor Finish Method Type:
    Painted
    Motor Reversible:
    Yes
    Number of Blades:
    9
    Product Certification:
    UL/CUL
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM Low II:
    29
    RPM Medium IV:
    50
    Safety Rating:
    UL/cUL
    Voltage Cycles:
    60HZ
    Watts Low:
    4
    Watts Medium:
    13
    Watts Per Bulb:
    18
    Wet Rated:
    Yes
