Part Number: FP6285BDZ / Vendor ID Number: 778 / Custom:

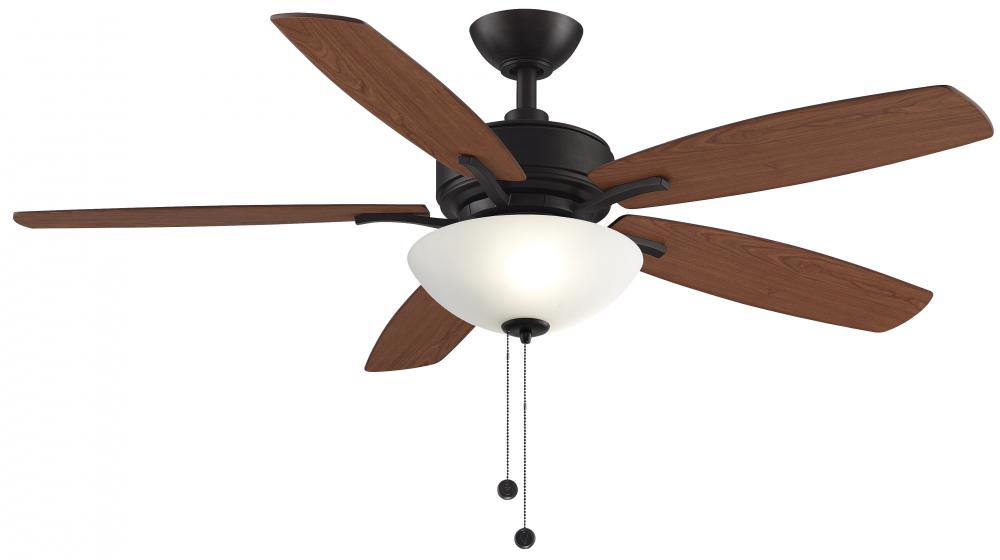

Aire Deluxe - 52 inch - DZ with LED Bowl LK

Aire Deluxe - 52 inch - DZ with LED Bowl LK

314

Pack Of: 1

Manufacturer availability unavailable.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 17.36"

Width: 52.00"

Finish

Dark Bronze

Product Overview

Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Info & Guides

Click Here to View Specsheets

Technical Details

Energy Information at High Speed

Airflow:

4842 Cubic Feet per Minute

Electricity Rate:

55 Watts (excluded lights)

Airflow Efficiency:

88 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Bronze /vendors/vendorImages bronze.jpg

Style:

Traditional

Option:

Dry Rated

LED

Voltage:

10-99

Glass Finish or Style:

Frosted

White/Off-White

Lumens:

1601-2600

Number of Blades:

5 Blades

Subfinish:

Dark Bronze

Location Rating:

Dry Rated

Wattage:

Finish:

Dark Bronze

Option:

Dry Rated

Glass:

White Frosted

Category:

Fan-Uni

Family:

Aire Deluxe

Voltage:

120

Number Of Bulbs:

2 Bulbs

Additional Info:

3 Speed AC Motor with reverse switch

3941 CFM on High

Lifetime Limited Warranty

Pull Chain Operated

Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

4842

Air Flow Efficiency:

Amperage:

0.46

Blade Finish:

Cherry/Dark Walnut

Blade Pitch:

Blade Span:

Bulb Type:

9 Watt LED Bulb

Canopy:

Diameter- 5.91 Height- 2.13

Diameter:

9.06

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

2700

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1620

Material:

Wood

Motor Fan Speed:

Motor RPM:

158

Motor Size:

153 x 15

Motor Type:

Pull Chain Included:

Yes

Ship Carton Height:

10.5

Ship Carton Length:

Ship Carton Width:

12.8

Ship Weight:

19.67

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

17.26

Airflow Efficiency Low:

186

Airflow Efficiency Medium:

124

Avg Airflow Efficiency:

102

Avg CFM Energy:

3476

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Yes

Blade Sweep:

Cap Included:

Carton Cubic Feet:

1.7889

Cartons Per Unit:

Case Height:

10.5

Case Length:

Case Weight Pounds:

19.67

Case Width:

12.8

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.59

Ceiling to Bottom with LK:

17.36

CFM Low:

1927

CFM Medium:

3222

Compatible Accessories:

CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ

Compatible Controls:

BTCR9, BTR9, C4, CRL4LA, CRL4WH, CRL8TS

Compatible Wall Controls:

CW1SWLA, CW1SWWH, CW2LA, CW2WH, CW60WH, CWRL4LA, CWRL4WH

Country of Origin:

China

CRI:

Current Draw Low:

0.2

Current Draw Medium:

0.33

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Included Control Type:

Pull Chain

Leadwire:

Light Kit Energy Star:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Product Certification:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM Low II:

RPM Medium IV:

113

Safety Rating:

UL/cUL

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Watts Per Bulb:
