Part Number: P807002-028-CS / Vendor ID Number: 667 / Custom:
P807002-028-CS 6IN EDGELIT LED TRIM CCT

P807002-028-CS 6IN EDGELIT LED TRIM CCT

43
13
Pack Of: 1
WAS
$
53
92
  • Manufacturer has 1375 items available.

  • COGs: $20.50
    Qty
    Product Specification
    Dimensions
    Height: 1.82"
    Width: 7.17"
    Product Overview

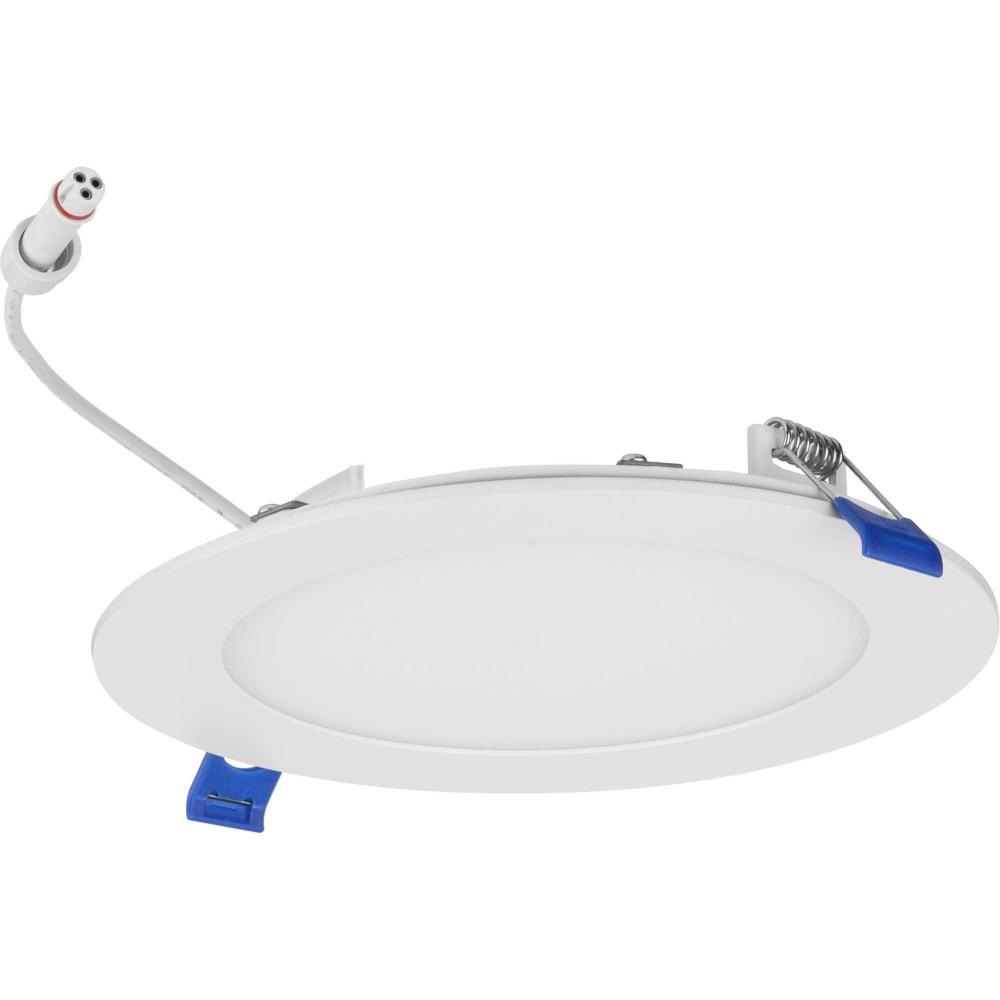

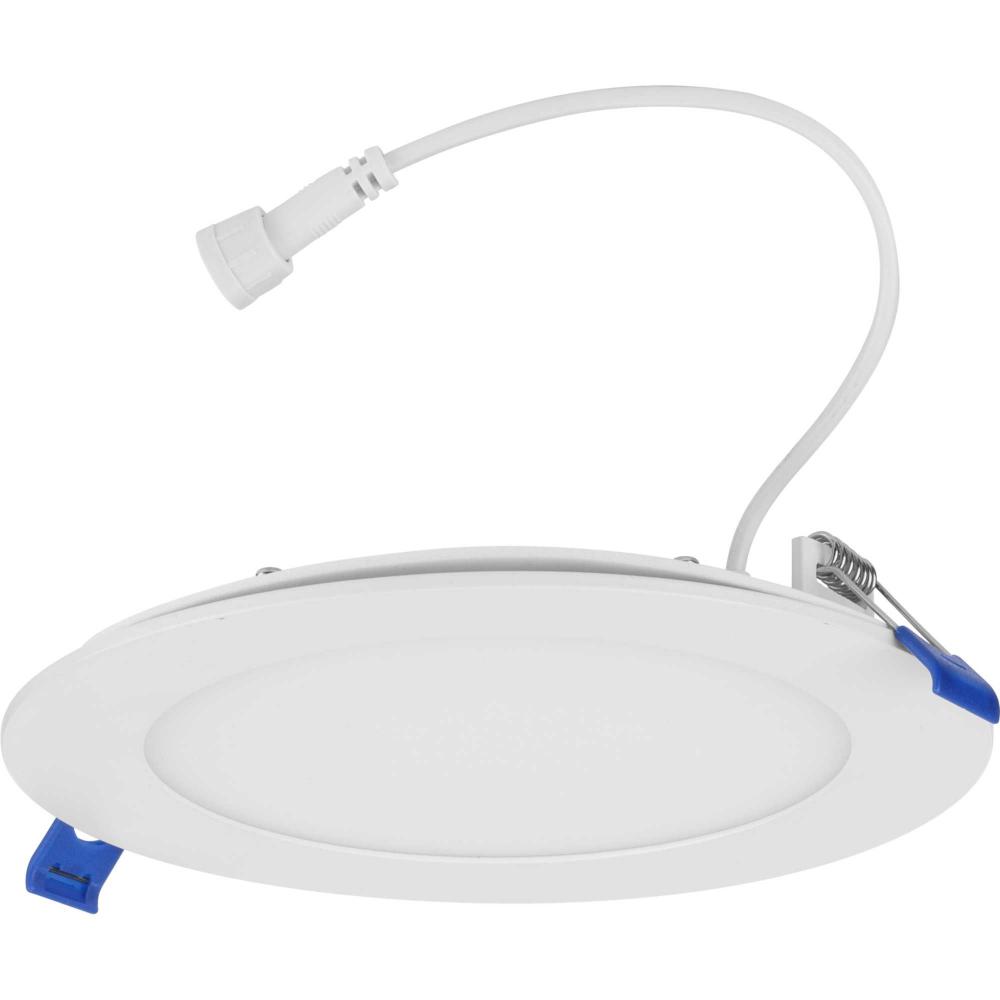

    Innovative, 5-CCT selectable LED technology and a slim profile make the 6-inch Everlume Recessed Downlight an ideal downlight for new construction and remodel projects. Smooth, even edge-lit illumination in a choice of 2700K, 3000K, 23500K, 4000K or 5000K color temperature settings is delivered through a polycarbonate lens. The 12W, 925 integrated LED light source is dimmable using ELV or TRIAC dimmers. Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings. A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing. The trim features a gasket to close off the ceiling opening. Additionally, spring clips ensure a secure flush mount to the ceiling surface. Everlume recessed LED is easily installed into 6-inch openings in low clearance, new construction and remodel, ceiling applications. This versatile downlight is JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
    Included Items
    Bulbs: (1) x 12 Watt LED Solid State
    Additional Information

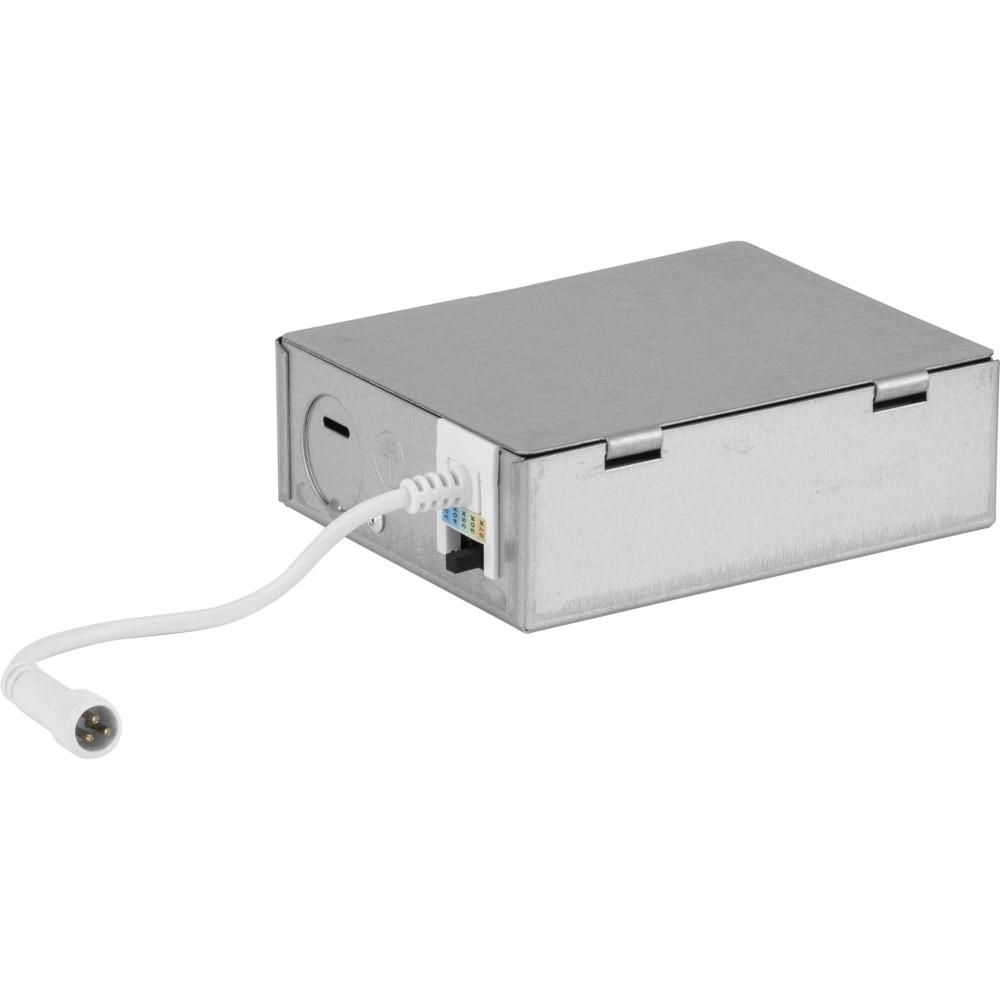

    A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing
    Edge-lit surface delivers glare-free illumination to low clearance, new construction and remodel, ceiling applications residential and commercial settings
    Everlume easily mounts to ceilings in indoor rooms including bathrooms, bedrooms, bonus rooms, garages and sitting rooms and outdoor settings like porches and patios
    Includes installation instructions and mounting hardware for a quick, easy installation
    Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings
    Measures 7.165 in. Dia x 1.815 in. H
    Smooth, even edge-lit illumination in a choice of 2700K, 3000K, 23500K, 4000K or 5000K color temperature settings is delivered through a polycarbonate lens. The 12W, 925 lumen integrated LED light source is dimmable using ELV or TRIAC dimmers

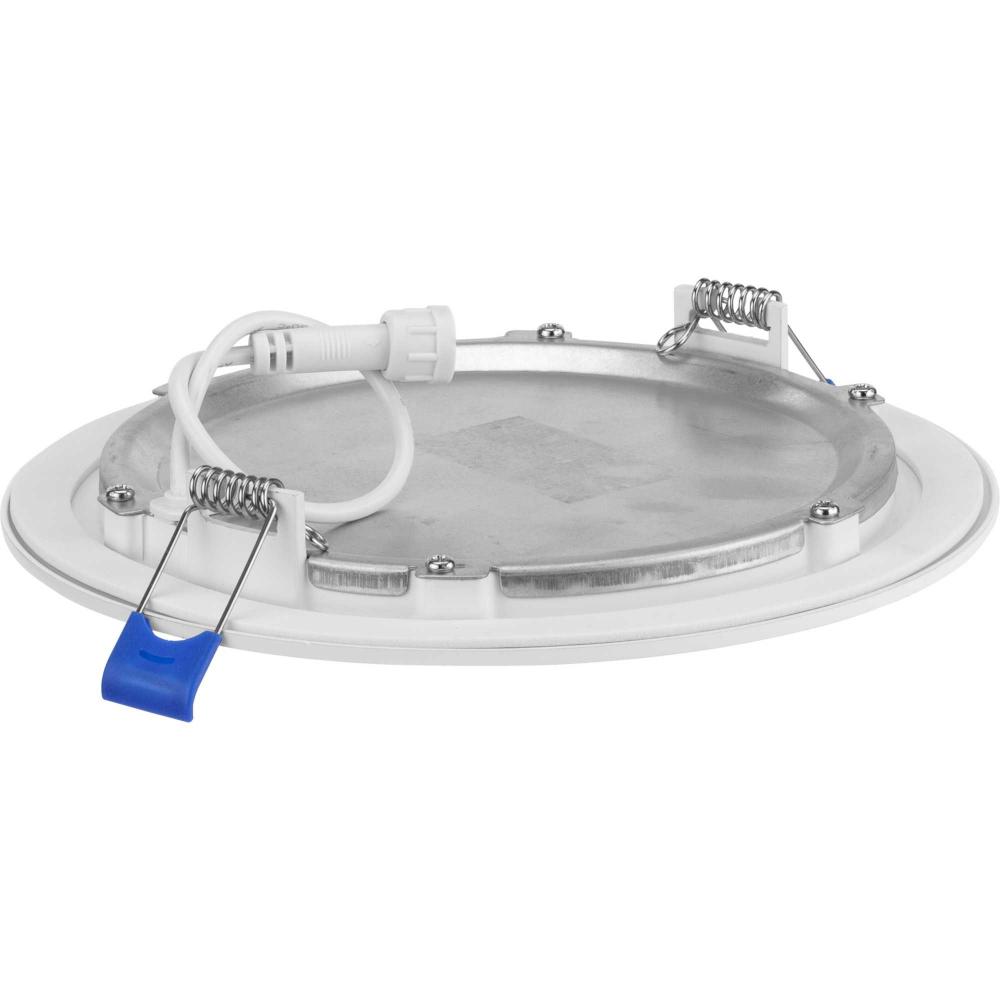

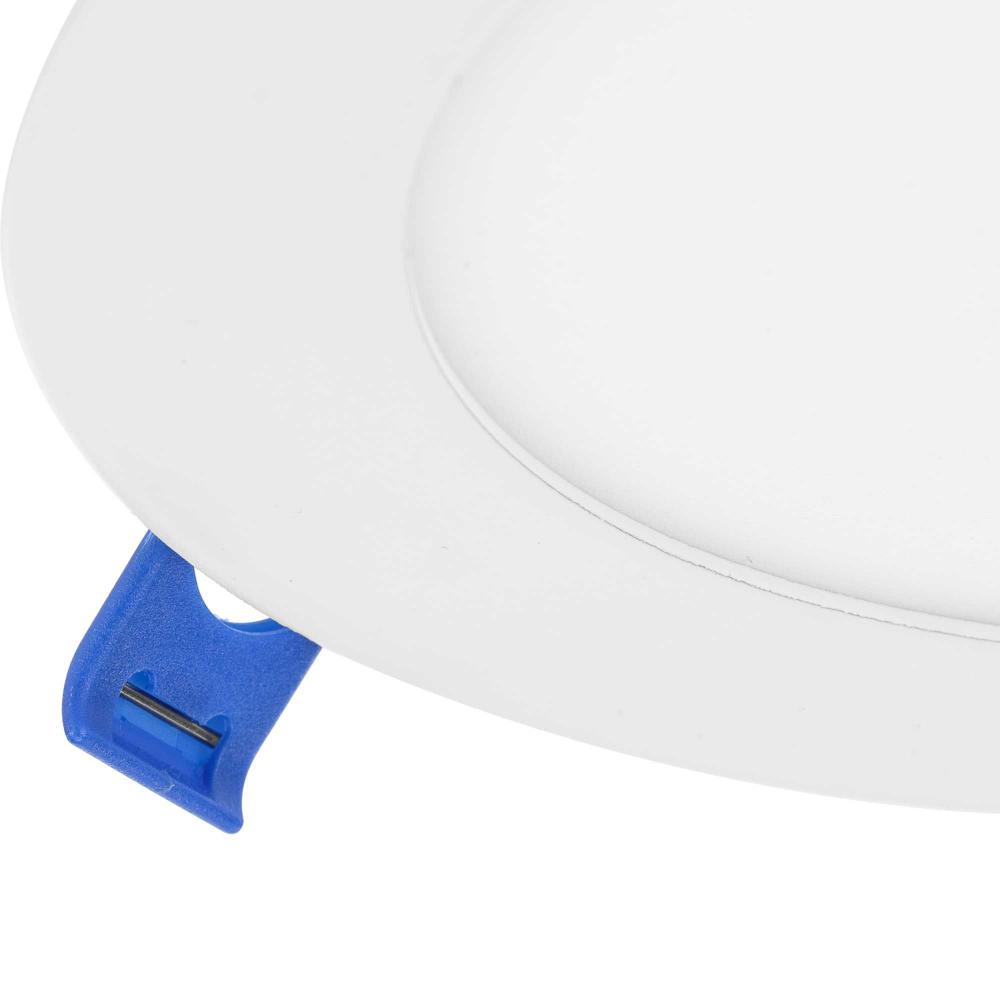

    The trim features a gasket to close off the ceiling opening and spring clips ensure a secure flush mount to the ceiling surface.
    This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
    Warranty: Our 5-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
    Info & Guides
    Technical Details
    Details
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Finish:
    White /vendors/vendorImages white.jpg
    Option:
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Wet Rated
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    100-120
    Lumens:
    450-800
    Mount Type:
    Flush Mount
    Kelvin:
    2501-3000
    Location Rating:
    Wet Rated
    Wattage:
    12w
    Category:
    Recessed
    Finish:
    Satin White
    Style:
    Utilitarian
    Option:
    Prop 65 /vendors/vendorImages prop65.png
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Wet Rated
    Family:
    Everlume
    Voltage:
    120 VAC
    Number of Bulbs:
    1 Bulbs
    Bulb Hours:
    50000
    Bulb Type:
    LED
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Keyword(s):
    Bathroom, Bedroom, Bonus Room, Garage, Great Room, Kitchen, Laundry, Living Room, Sitting Room, Utility
    Length:
    7.17 in
    Lumens / Light Output:
    925 lm
    Material:
    Aluminum, Steel
    Ship Carton Height:
    7.48
    Ship Carton Length:
    7.64
    Ship Carton Width:
    2.8
    Ship Weight:
    1.41
    Warranty:
    5 Years Limited Warranty
    Weight:
    0.79
    Americans with Disabilities Act:
    Yes
    Base Type:
    Integrated
    Bulb CRI:
    90
    Bulb Included:
    Yes
    Bulb Wattage:
    12 W
    Can be Mounted Up or Down:
    No
    Color:
    White
    Convertible Fixture Includes Both Mounts:
    No
    Country of Origin:
    CN
    Dark Sky:
    No
    Dimming:
    ELV/Reverse Phase;Triac/Forward Phase
    Dimming Range:
    Dims to 10% Brightness
    Energy Efficient:
    Yes
    Energy Star:
    No
    Finish Type:
    Painted
    Frequency Rating:
    60 Hz
    Lamp Type Basic:
    Solid State
    Lumens per Watt:
    77
    Mount Location:
    Ceiling Flush/Recessed
    Post Top Fits Standard:
    No
    Prop 65:
    Yes
    Quick Link Connector:
    No
    Safety Rating:
    cETLus Approved
    Starting Temperature Minimum:
    -25 °C
    Title 24:
    Yes
    Wet Rated:
    Yes
